What is DMX?
DMX stands for Digital Multiplex. It’s a communication protocol used to control stage and event lighting. It was originally developed in the 1980s to create a universal system for lighting equipment to talk to each other. Before DMX, lighting control was messy – each brand had its own system, and connecting different lights often meant using adapters or custom setups.
DMX solved this by creating a standard. Today, DMX512 (the most common version) is used worldwide to control lights, fog machines, lasers, moving heads, LED fixtures, and more. It allows you to send control data from a lighting console or software to your lighting devices using simple XLR cables. Even though it was designed decades ago, DMX is still the backbone of modern lighting systems.

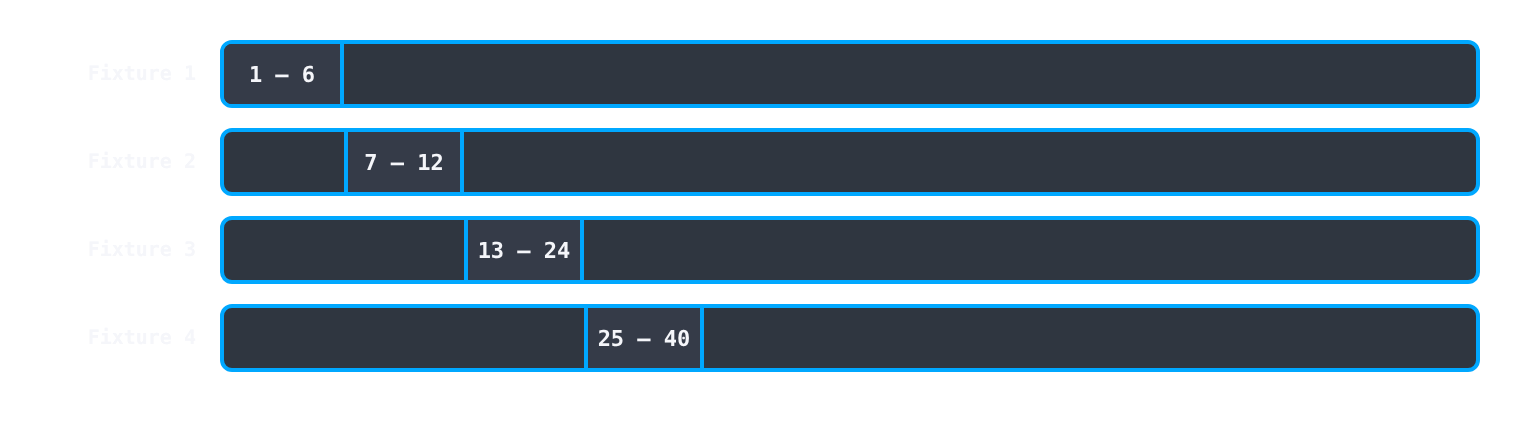

The number 512 in DMX512 refers to the number of channels in a single DMX “universe” – each channel can control one function of a light, such as brightness, color, or pan/tilt. Whether you’re working in a concert venue, a theater, a nightclub, or a backyard event, if lights need to be synchronized and controlled, DMX is the go-to solution.
How does DMX work?
DMX works by sending control signals from a controller (hardware or software) to lighting fixtures through a daisy-chained cable system. The controller acts like a “brain,” sending out fast digital instructions 44 times per second to all connected devices.

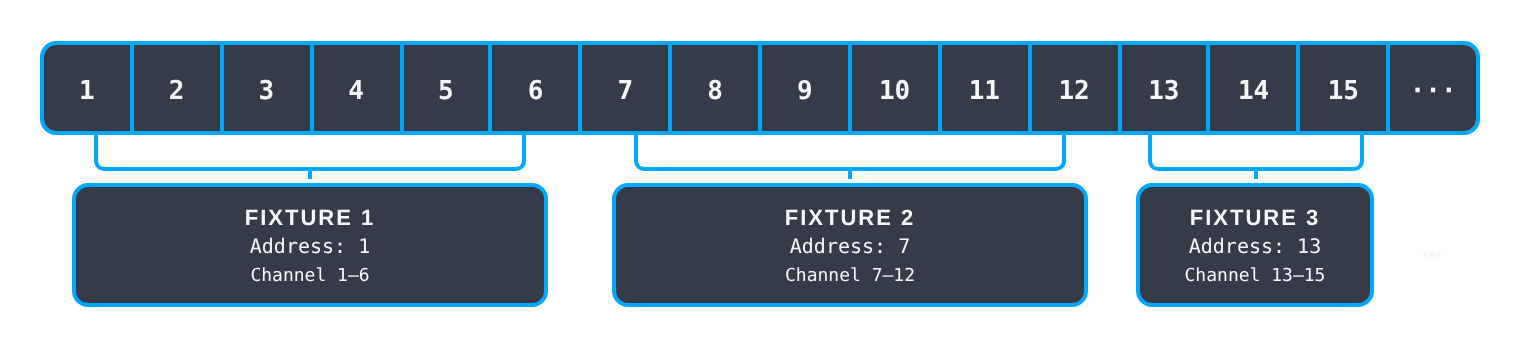

Each fixture is given a starting address – this is the DMX channel where it begins listening. For example, if a light uses 6 channels and its starting address is set to 1, it will respond to channels 1 through 6. The next light might start at channel 7, and so on. This allows one controller to manage many different lights, each doing something different at the same time.

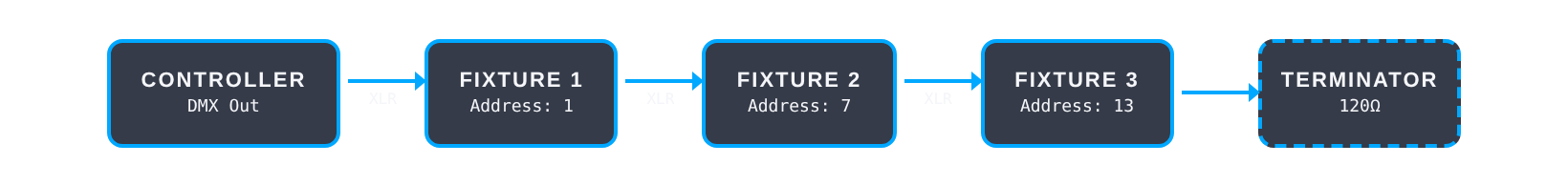

DMX signals are sent through XLR cables, typically 3-pin or 5-pin. All devices are connected in a line – controller to light 1, then to light 2, and so on. The last device in the chain should have a DMX terminator (usually a 120-ohm resistor) to prevent signal reflections that can cause flickering or glitches.
DMX is a one-way protocol, meaning data only flows from the controller to the fixtures. It’s simple, reliable, and fast. With just one DMX universe (512 channels), you can control dozens of fixtures. For larger shows, multiple universes can be used, either with advanced hardware or software that supports Art-Net or sACN over Ethernet.

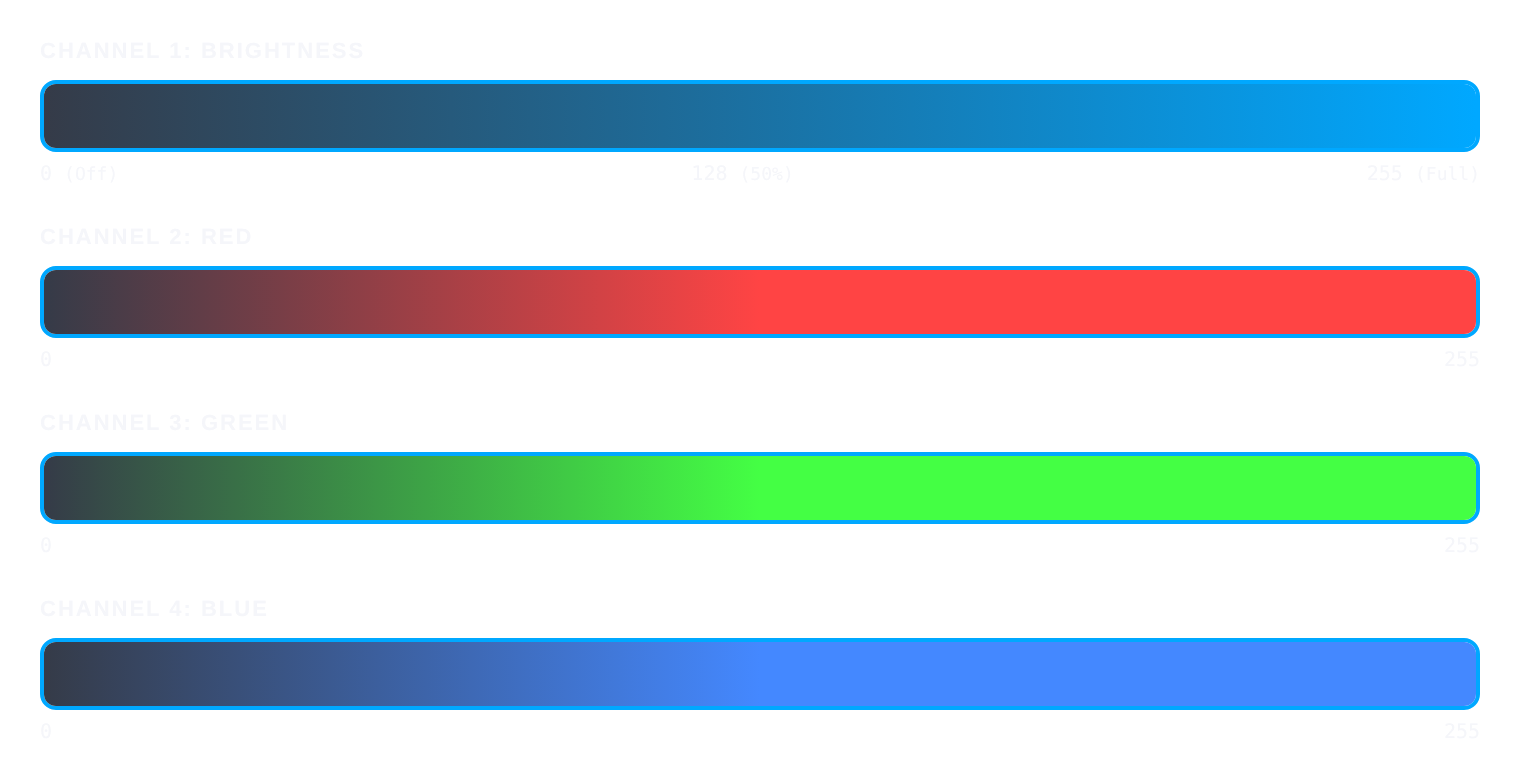

Because DMX is digital, each channel can have a value between 0 and 255. That range controls things like intensity (0 = off, 255 = full brightness), color mixing (e.g., RGB), strobe speed, or even motor movement in intelligent fixtures.
Industry-standard DMX consoles
Some of the most powerful and advanced DMX control systems are made by companies like MA Lighting (known for the grandMA series), Avolites, and Chamsys. These consoles are used in large-scale productions, concerts, and theaters around the world. They offer advanced features, touchscreen interfaces, and deep programming tools. While they are excellent for complex shows, they can also be expensive and require training. If you’re looking for a Simple DMX Controller for Windows, our app offers an easy way to control your lights without the learning curve or high cost of traditional consoles.

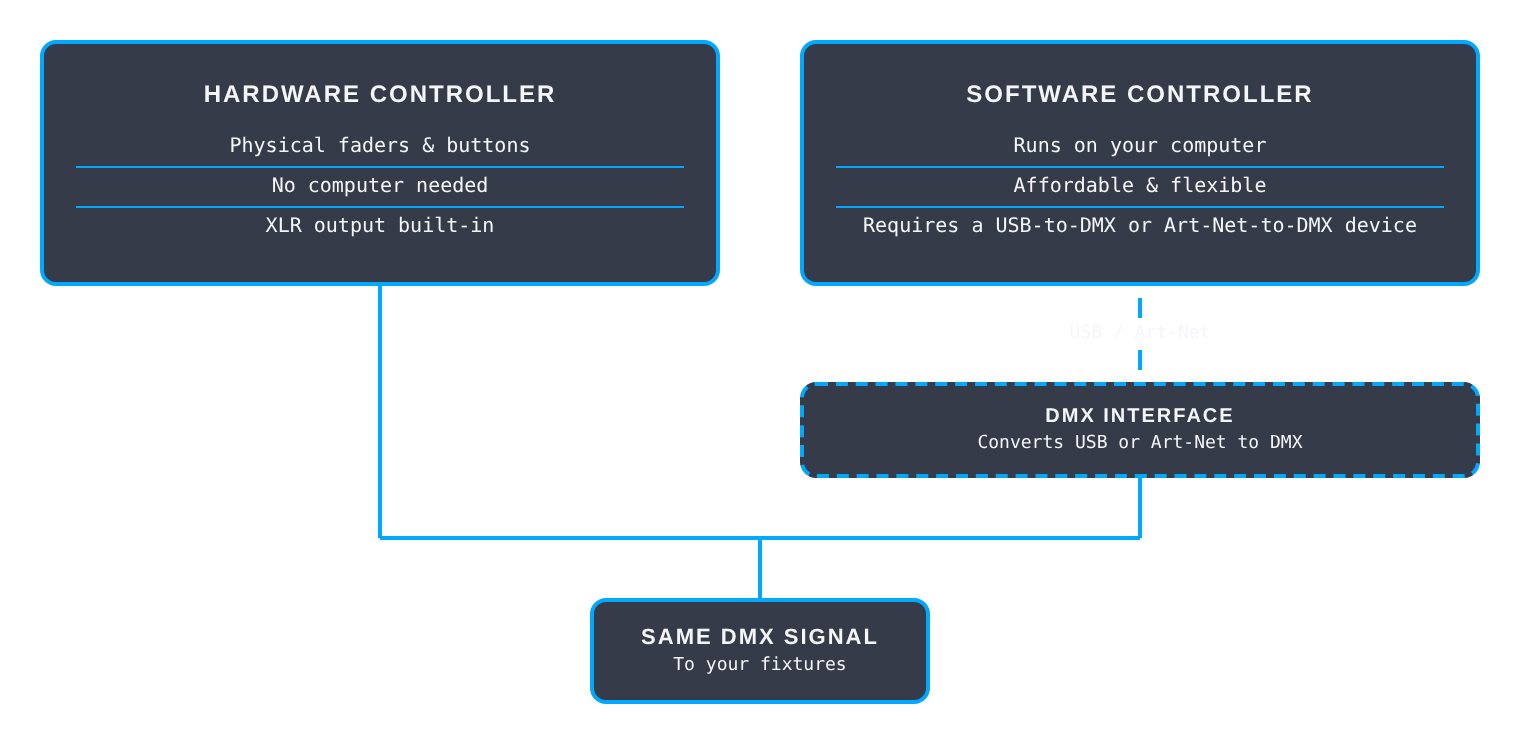

Hardware DMX controller vs. software DMX controller
When it comes to running a lighting show, there are two main ways to control your DMX lights: using a hardware DMX controller or software-based DMX control. Both options can send the same DMX signals to your fixtures – but how they work and what they offer can be very different.
What is a Hardware DMX controller?
A hardware DMX controller is a physical device – usually with sliders, buttons, and sometimes a touchscreen – that connects directly to your lights. It sends out DMX signals through standard XLR cables, and doesn’t require a computer to run. These controllers are popular in live environments where reliability, quick access, and real-time control are key.
What is a software DMX controller?
A software DMX controller runs on your computer and connects to your lights using a USB-to-DMX interface or Art-Net device. The software gives you a visual workspace to design scenes, effects and more. Many modern lighting setups now rely on software for its flexibility, lower cost, and powerful features.
Which one should you choose?
If you’re working in a high-pressure live environment where speed and simplicity are critical, a hardware controller might be the better option. But if you’re programming a show in advance, running a fixed installation, or want more creative control without the big price tag, a software DMX controller is a smart choice.
Looking for an easy and affordable way to control your lights? Our Simple DMX Controller for Windows lets you run your lighting setup from your PC – with powerful features, intuitive controls, and no steep learning curve.
